Charger Electric Bike - Photos and Tips
Charger Electric Bike - Photos and Tips

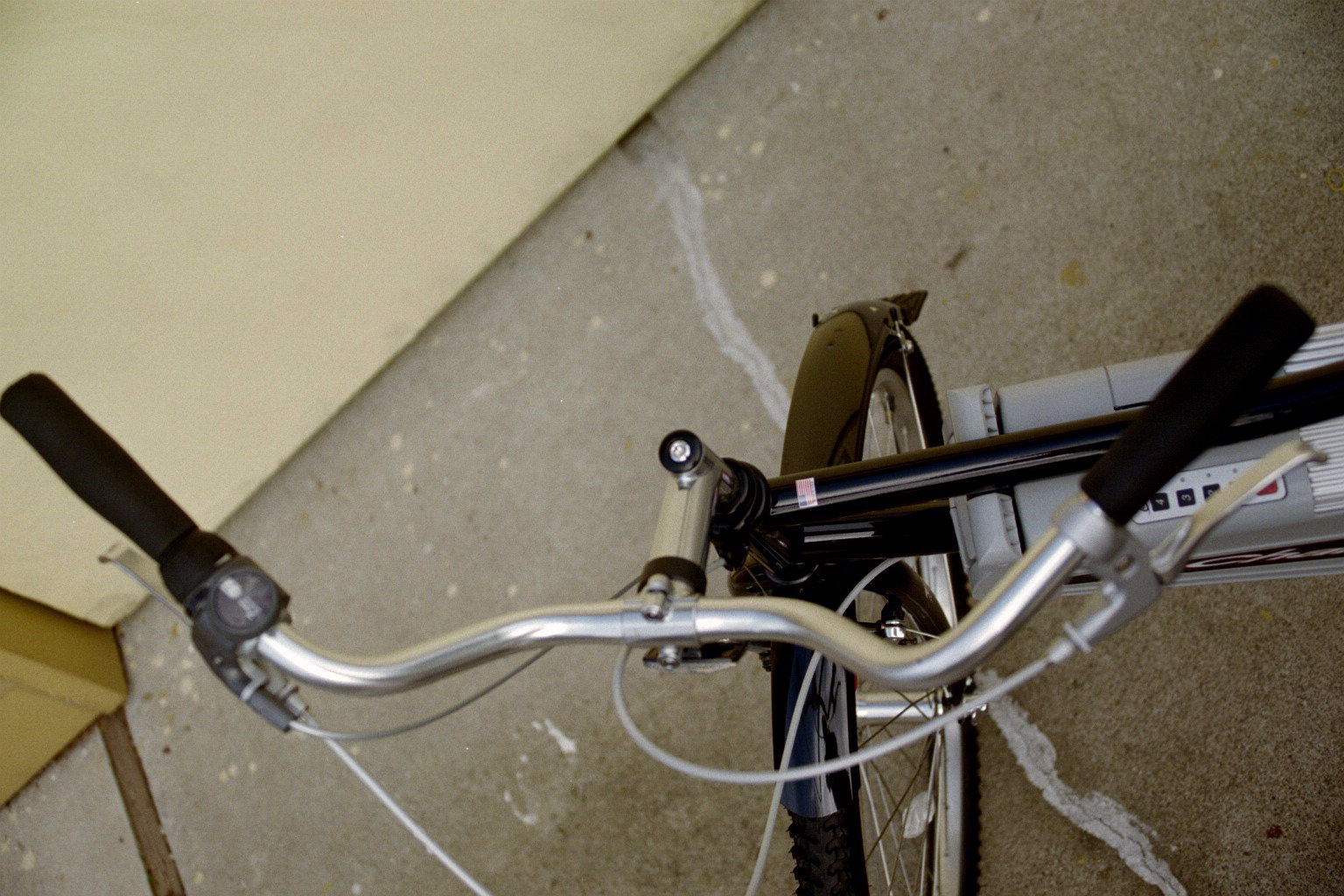

Barrel adjusters on each cable (brakes and gear shifting) make adjusting easy.

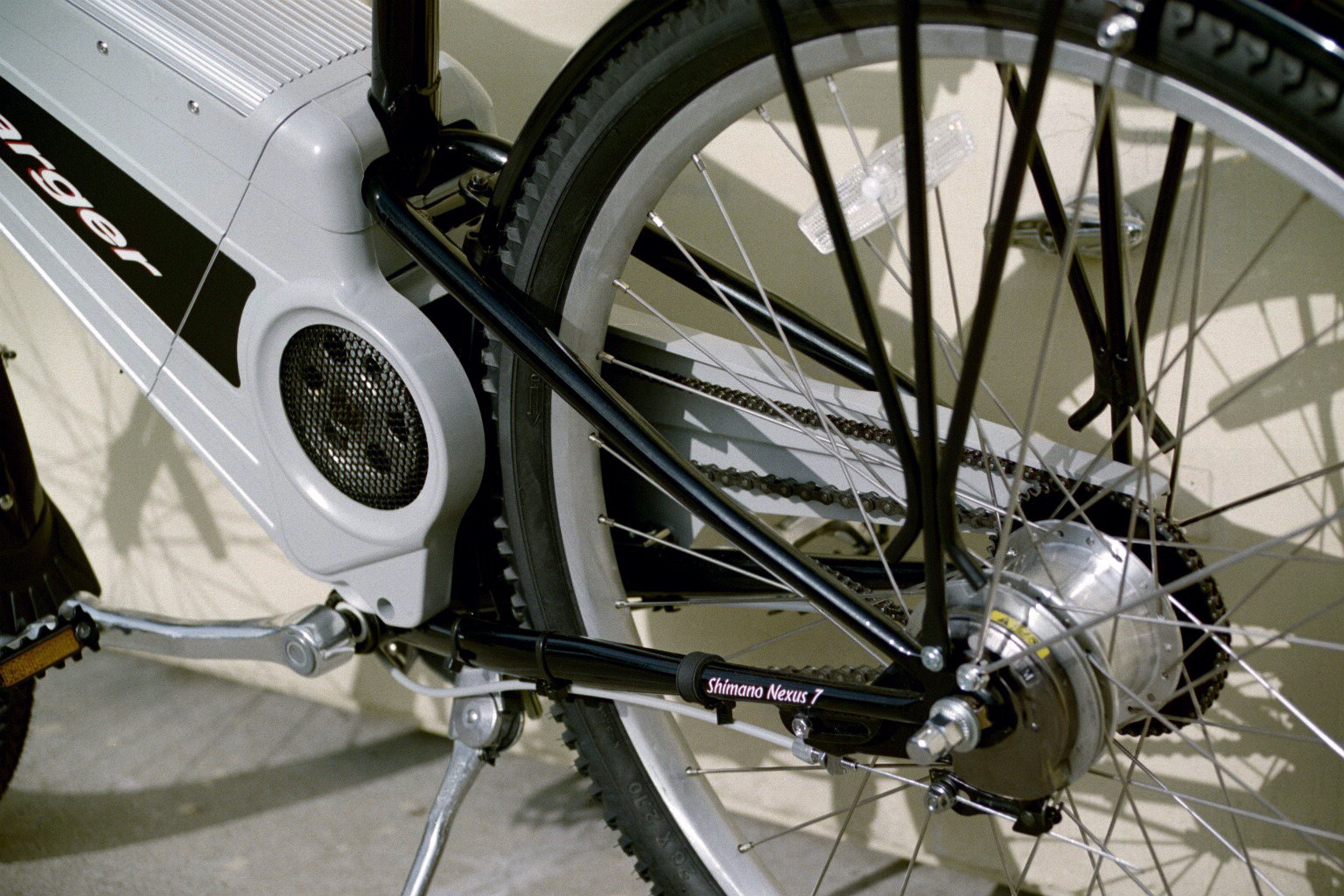

Shimano's Nexus 7-speed hub means you'll never get a bent deraileur. The brake cable can be release from the brake mechanism by pulling the brake thingy and twisting the cable clamp.

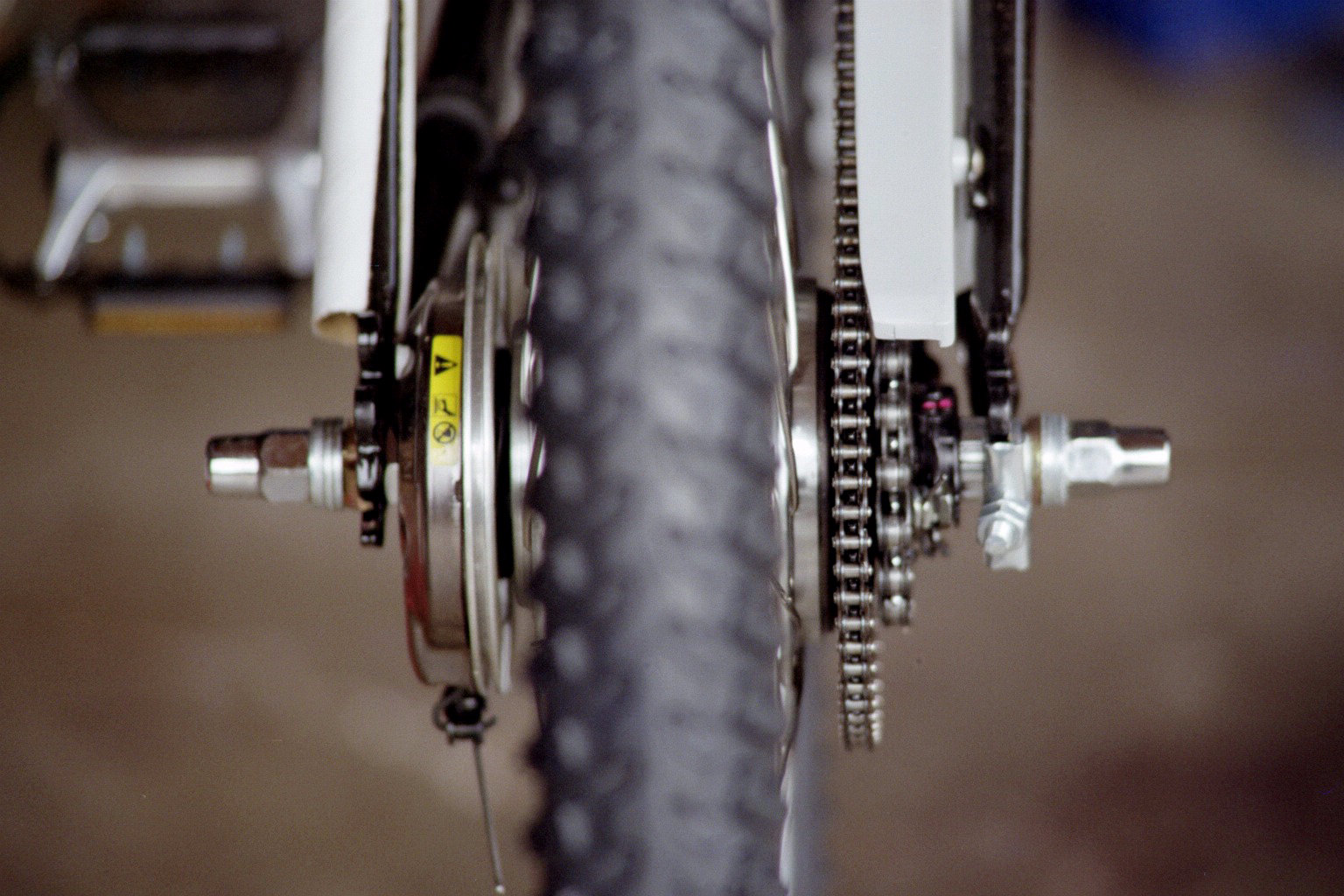

The axle restraint (with the two nuts) keeps the axle from moving (which changes the adjustment of the chains). Notice the extra washer to ensure that the axle nut fits tightly.

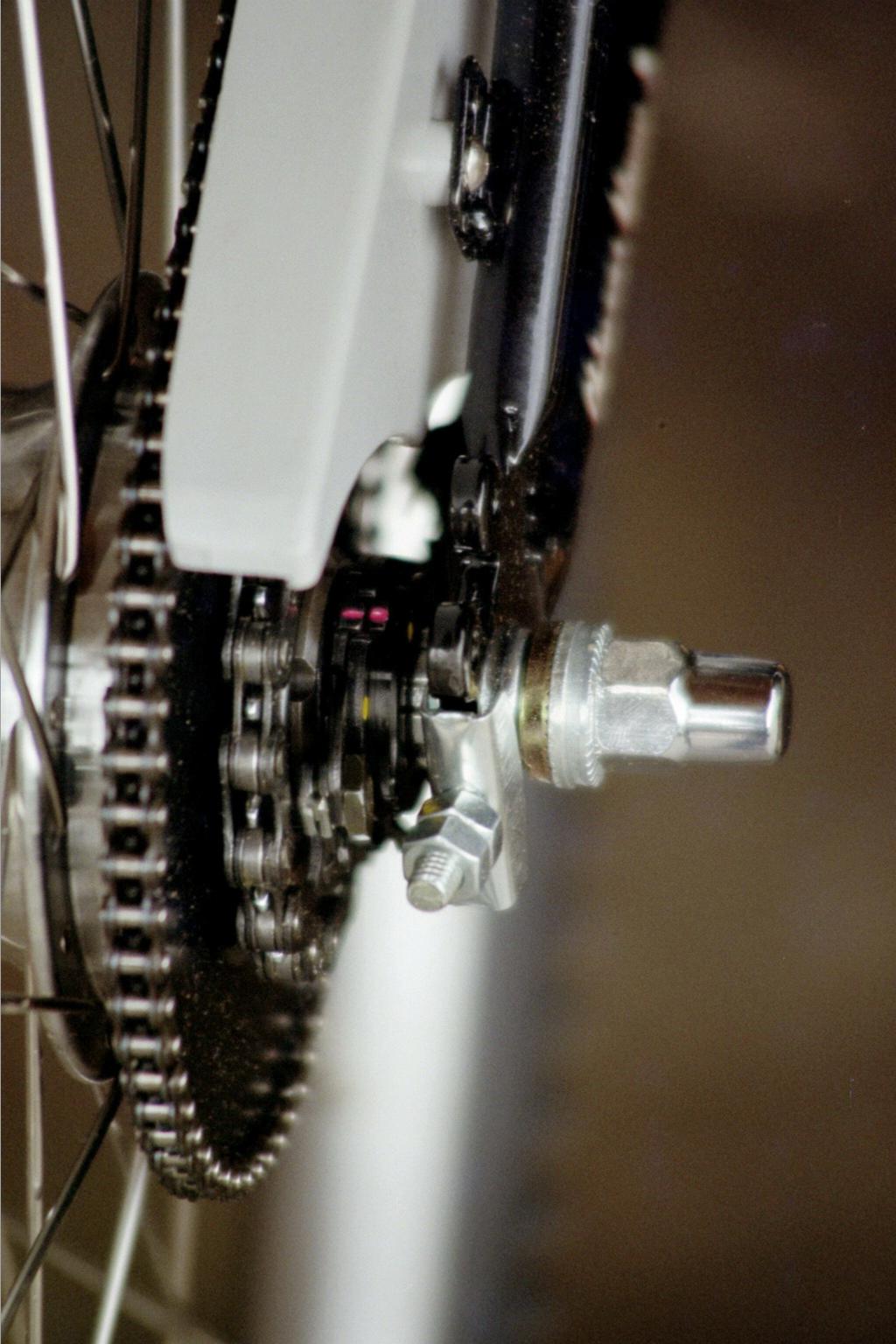

When the shifter is in gear '4', the red dots should align. If not, adjust the cable length. This can usually be done using the barrel adjusters at the shifter on the handlebar. Both sides have an extra washer or two to ensure the axle nuts fit tightly without jamming on the inside.
