Charger Electric Bike - Photos and Tips
The power pack is easily removed by pushing the handle/latch forward. It's a friction fit that requires about five pounds of pressure to release.

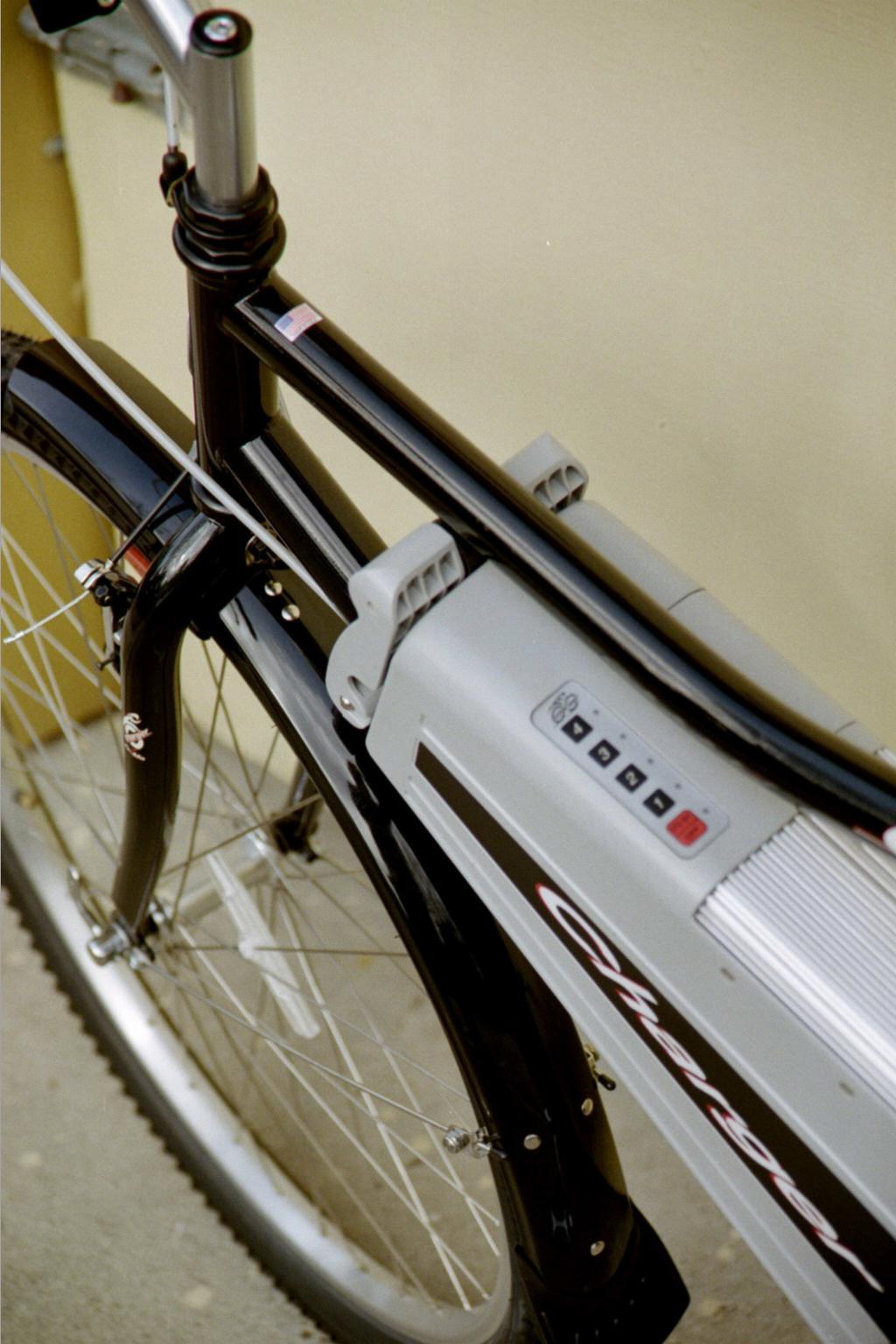

The keypad requires entry of a PIN (personal Id. number) to activate the system. Select one of five power-assist levels (0 assist through 4 times your effort). Press the red button for 2 seconds to de-activate the system.

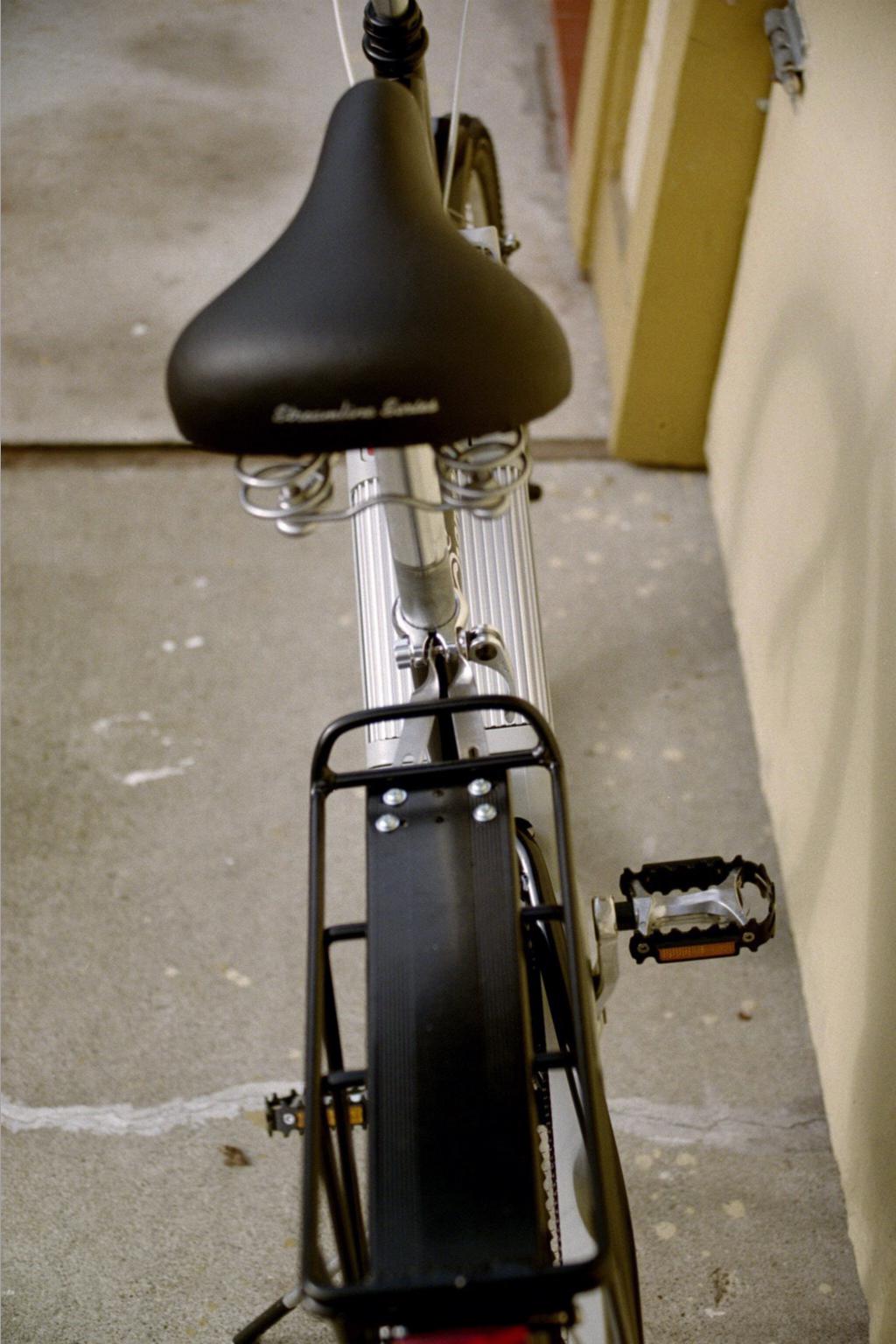

One place to attach a rear rack is at the seatpost quick release. To fit, he left strut needs to be filed at the 10 o'clok position (when looking at the strut from the left). Assembly order when inserting the quick-release screw from the right is right strut, seat post clamp, left strut, seatpost clamp, nut.

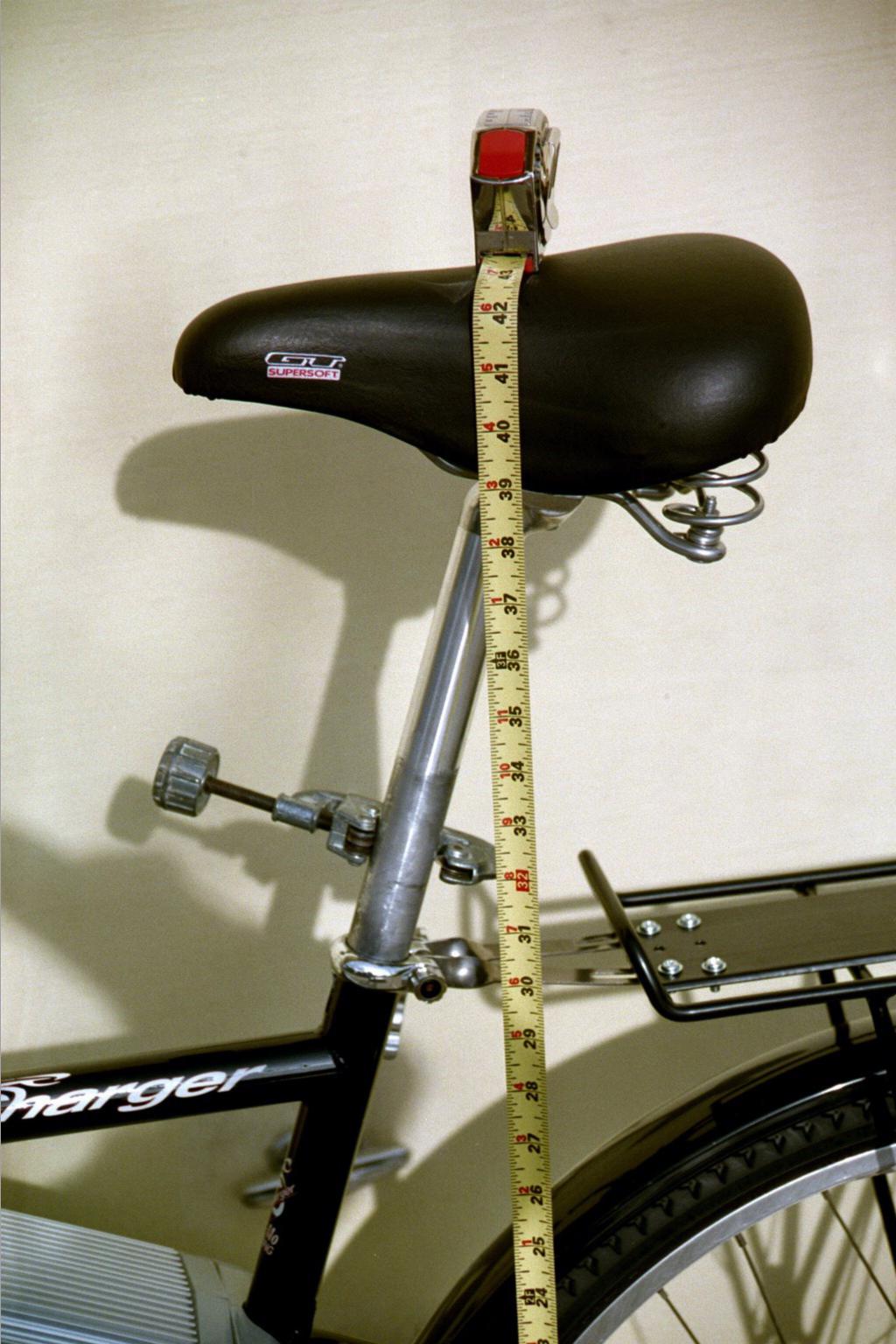

The seat and tongue is 6" tall, so the lowest seat position is 36" off the ground. That's about right for someone 5'0" tall. The highest position is 42", good for someone 6'2". Since the seat tube is only 8" deep, you may need to cut off the end of the seat post with a tube cutter.
