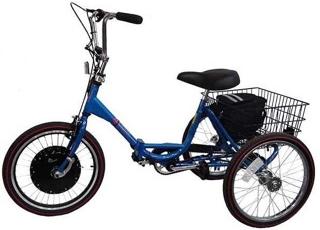

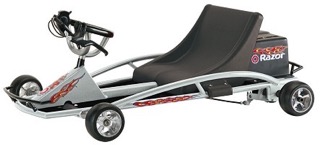

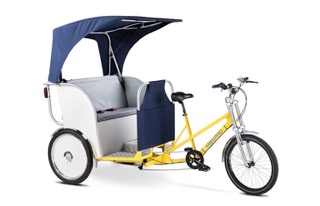

razorgocart Electric Trike Kit velotrike pedicab greenscooter
E-Go Kart E-Trike E-Velotrike E-Pedicab E-MotorScooter

One of the most exciting development in batteries is the new eco-friendly Silicon Crystal Battery.  The new silicon battery's main advantages are; low cost (as compared to lithium-ion), high capacity, high current output, rapid recharge time, low temperature performance, long life span, and environmental friendliness.  In many cases, where weight and size are not the primary concern, these batteries are often preferable to lithium batteries!  Other feature, of primary importance to EV users, is its ability to be rapidly quick-charged (flat to 90% capacity in less than 2 hours!) with no long term damage to the battery.

Based on an electrolyte of liquid low sodium silicate compound, the battery can operate normally in extreme temperatures from -50 deg C to +60 deg C.  The silicon battery has a higher charge density per kilogram than traditional lead acid batteries, with twice the life (up to 400 full recycles, 1000 cycles at 50% depth of discharge).

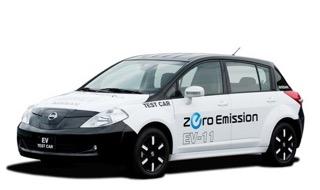

ev golfcart eforklift ecar electric-pickup
E-Motorcycle E-Golf Cart E-Forklift E-Car Conversion E-Pickup Truck Conversion


FEATURES:

  • ACID FREE!! Proprietary electrolyte mixture does not corrode the electrodes; hence increases capacity and prolong battery charging cycles
  • Excellent performance at extreme temperatures: -40oF to +160oF
  • High float charging ability, charging even with current as low as 0.03A
  • Low internal resistance enhancing the active chemical substances to low current
  • Long storage time with low self discharge rate: approximately 20% in 2 years
  • Maintenance free
sblogo

BENEFITS

  • High current recharge 0.8C - 1.0C
  • Internally tested the high current discharge capability at 30C in 8 seconds, with no damage to the battery
  • High and low temperature ratings of  -40oF to +160°F
  • No internal battery memory to improve the performance in whole
  • Capability to be fully discharged and recharged approximately 600 times (lead acid batteries approximately 200 times)
  • No acid mist emissions from the electrolyte
  • No hazardous materials used in the production of the battery (Eco-friendly)
  • Cycling charge life can last as long as 20 years depending on the application and depth of discharge
  • Works normal in deep sea applications of 6000 meters beneath the sea
  • Electrolyte can be used as a high grade fertilizer!! after the life-cycle of the battery and the rest of the housing recycled
sb12_100

EXCEEDS ENVIRONMENTAL STANDARDS

  • Exceeds international storage capacity standards by 1.75 times
  • Exceeds international recharge acceptance capacity standards by 2.68 times
guarantee

INTERNAL RESISTANCE

  • GMX silicone battery has a smaller internal resistance generally 2 mili-ohm twelve to thirteen times smaller than that of the lead-acid battery. Furthermore, there is little or no visible temperature rise during usage of the silicone battery.  The lead-acid battery has a relatively large internal resistance during usage generally 25 milli-ohm in the 12V series, the holes generated in the maintenance free lead-acid battery makes the internal resistance even greater.
sandtosilicon
sandtosilicon


20Ah E-bike & Scooter Battery Packs      -Purchase Here-
Pack Size
Battery Pack Price
Choose Your Charger
24V 20Ah
$199.98
Select one of 4 Chargers->
36V 20Ah
$299.97
Select one of 3 Chargers->
48V 20Ah
$399.96
Select one of 4 Chargers->
60V 20Ah
$499.95
Select one of 2 Chargers->
72V 20Ah
$599.94
Select one of 2 Chargers->
EV Conversion Battery Packs      -Purchase Here-
Pack Size
Battery Pack Price
Choose Your Charger
240V 20Ah
Prius Conversion
$1199.00
(Use Standard Built In Charger for Prius)
156V 48Ah
Myers Conversion
$2199.00
(Use Built In Lead Acid Charger)
Products Specifications:
Model
Voltage
Capacity
Dimension(in)
Weight
lbs
Price
Purchase
Bulk Purchase Discount
(V)
(AH)
L
W
H
GMX12-17
12
17
7.13
3.03
6.73
13.6
GMX12-20
12
20
7.13
3.03
6.73
15.0
$89.99
$1990 for 40
GMX12-24
12
24
7.87
3.03
4.72
15.8
GMX12-33
12
33
7.68
5.12
6.50
24.3
$109.58
$2670 for 30
GMX12-40
12
40
7.72
6.50
6.69
29.0
$162.99
GMX12-45
12
45
7.72
6.50
6.69
32.3
GMX12-48
12
48
7.72
6.50
6.69
36.3
$188.95
GMX12-60
12
60
10.2
6.69
8.74
48.6
$250.38
GMX12-70
12
70
10.2
6.69
8.74
53.2
GMX12-100
12
100
13.03
6.89
8.86
61.6
$373.78
GMX12-120
12
120
15.6
4.33
8.86
66.0
GMX12-130
12
130
15.6
4.33
8.86
75.2
GMX12-150
12
150
13.4
6.89
11.6
88.0
factory

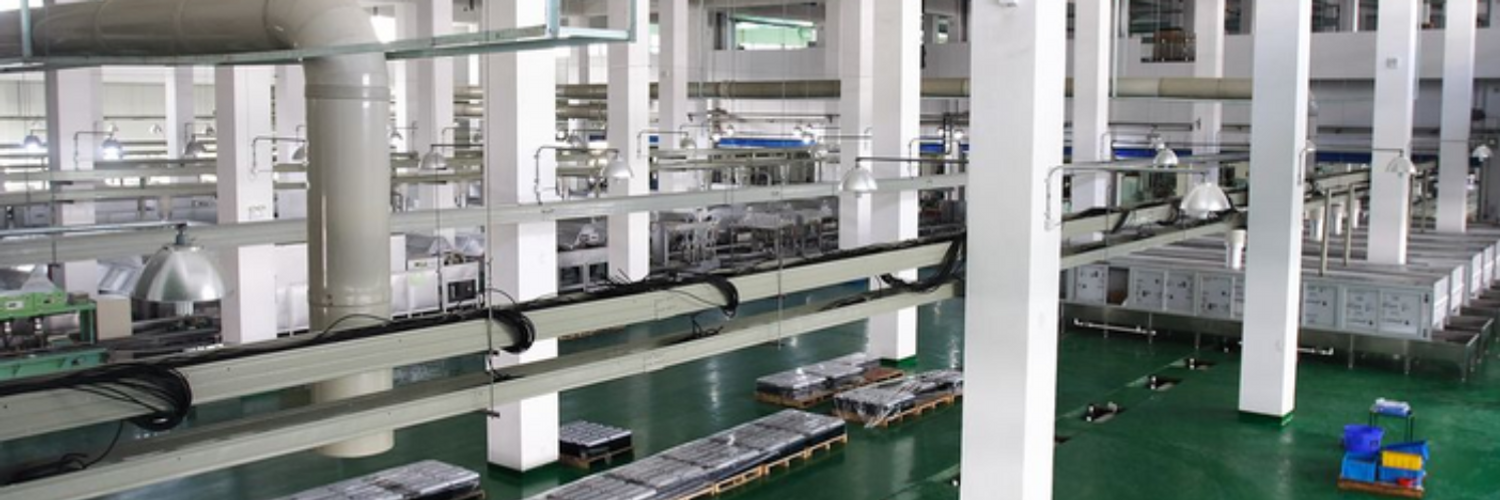

Silicon Battery Factory
Rated Capacity (AH) Examples:
Model
20hr Rate
10hr Rate
5hr Rate
1hr Rate
1.80V/Cell
1.80V/Cell
1.60V/Cell
1.20V/Cell
GMX12-20
26.6
23.5
22.6
17.1
GMX12-40
49.3
48.1
47.9
41.9
GMX12-60
73.9
70.9
65.3
55.3
GMX12-70
76.6
75.2
60.1
56.4
GMX12-100
109.5
107.5
85.8
80.6


  Lead Acid

Silicon Ni-Cad NiMh Li-NMC Li-Pol Li-Phos
Safety Good Very good Good Good Very Good Very good Excellent
Nominal voltage 2 2 1.2 1.2 3.7 3.7 3.7
Wh/Kg Energy density (gravimetric) 35 50 41 80 190 160 120
Wh/L Volumetric energy density 80 130 120 200 300 320 270
Cycle life 200 400
1000 50% Dod
250 400-500 750 100% Dod
1900 80% Dod
1000 2000 100% Dod
3000 80% Dod
Memory effect No No Yes No No No No
Operational temperature (C) -15° to +50° -50° to +70° -20° to +50° -20° to +60° -20° to +60° -20° to +60° -45° to +70°
Flexible form factor No No Yes No No Yes Yes
Self discharge (% per month) <0 <0 <10 <20 <5 <5 <5
Environmental impact High Low High Medium Low Low Low
Initial purchase cost Low Medium Medium Medium Medium/high High Medium/high
Lifetime cost (based on range and cycle life) High Medium Medium Low Low Low Low
